Description

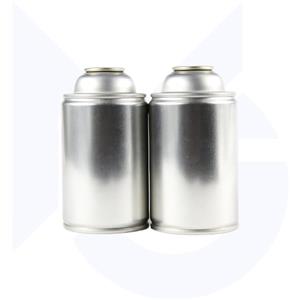

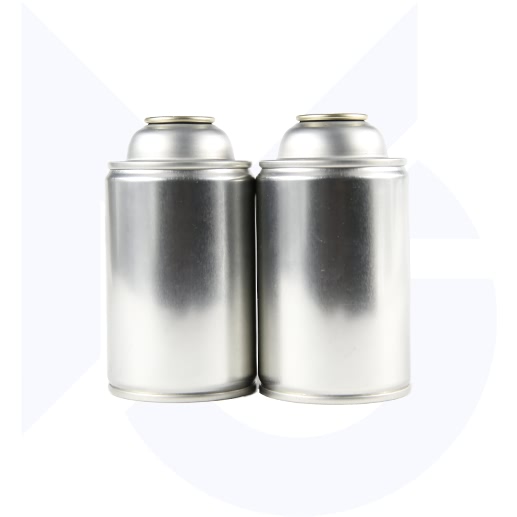

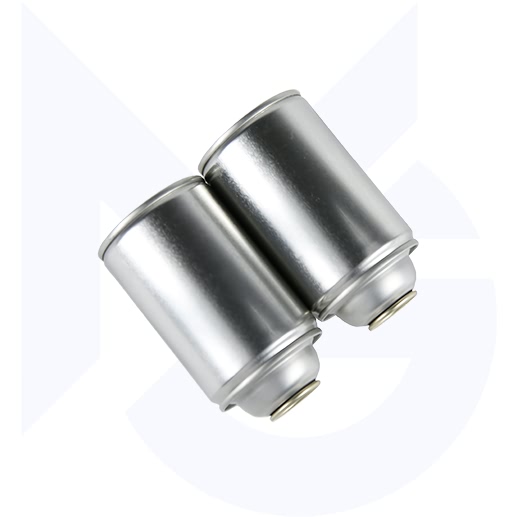

This empty aerosol tin can is used for HFC-134a, R-134a Refrigerant gas can series products. We provide OEM service and quality 3-pieces tinplate can with diameter 45mm, 49mm, 52mm, 57mm, 65mm and 70mm.

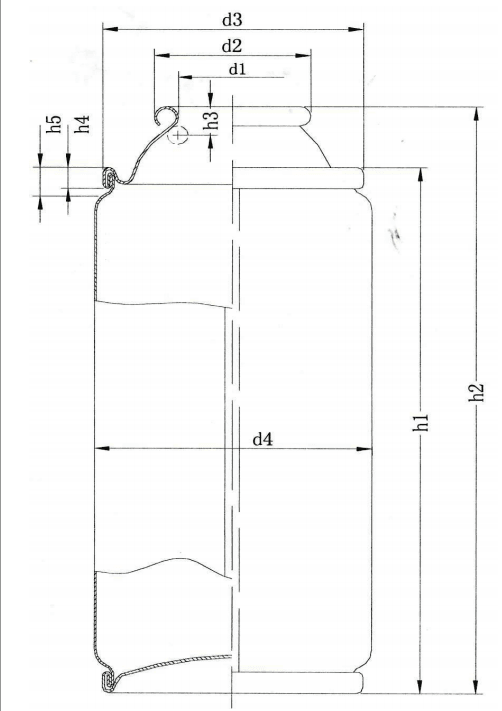

| SPECIFICATION | mm | Product drawing |
| d1 | opening dia inside | Φ25.40±0.10 |
|
| d2 | opening dia outside | Φ31.20±0.15 |
| d3 | outside dia of the double seam | Φ50.8±0.20 |
| h1 | can height | h1±0.10 |
| h2 | total height | h2±0.10 |
| h3 | contact height | 4.00±0.15 |
| h4 | height of the double seam | 2.90 |
| h5 | crinkle height | 6.00±0.20 |
| pressure | buckling pressure | ≥1.20Mpa |
| pressure | burst pressure | ≥1.40Mpa |
| cone | T0.28tinplate | T2.5BA |
| can body | T0.19 tinplate | T2.5BA |
| dome | T0.28tinplate | T2.5BA |
Size: 65×100mm
MOQ: 7500 pcs

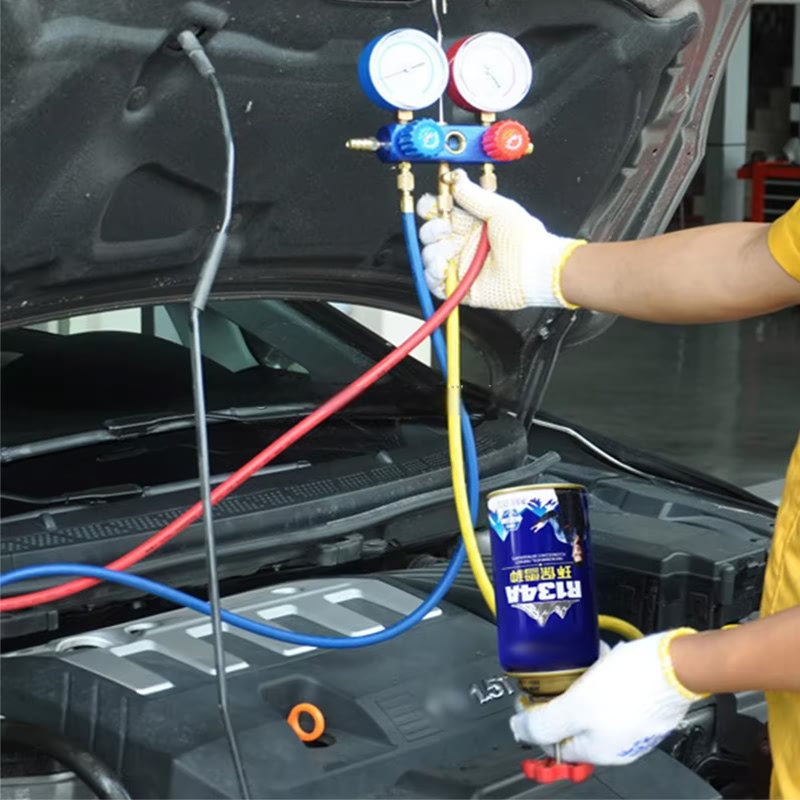

Usage: HFC-134a, R-134a Refrigerant gas...
Type: High top cone & neck in type
Printing color: clear varnish/white coated/CMYK cutomized
Pressure: high pressure (burst ≥ 18 bar); normal pressure (burst ≥ 14 bar)

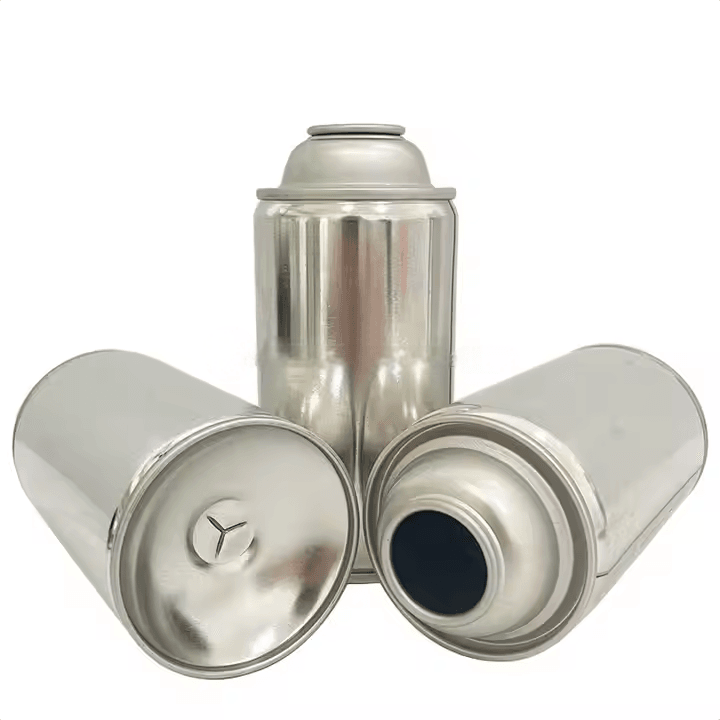

Customers can customize the high-pressure tank according to their own needs (as shown in the picture, the bottom of the pressure relief sign)

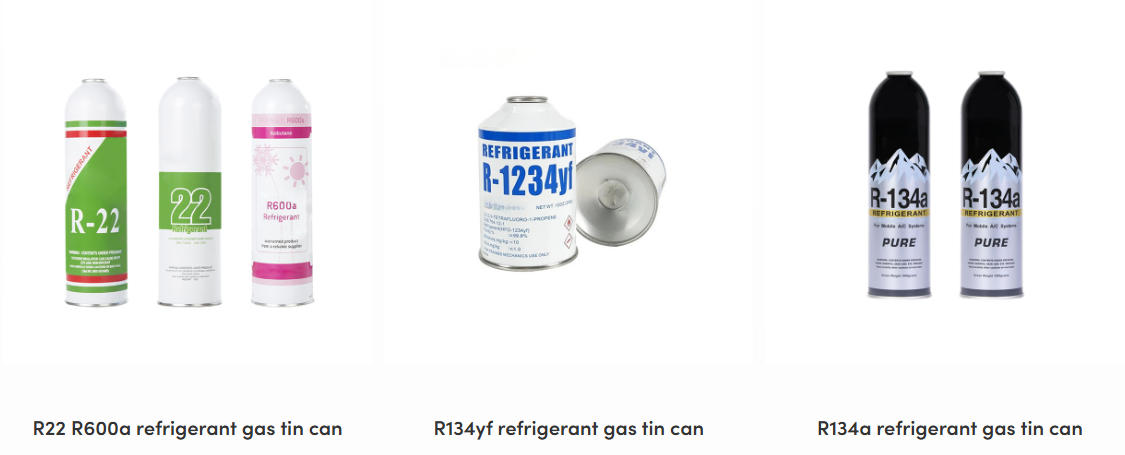

Other can options for Refrigerant gas product
Different from the general 3 pieces tinplate aerosol can, 2 pieces can only have 2 components--can body & aerosol can bottom, without aerosol can top.Moreover, the quality of 2 pieces tin can is also better than that of 3 pieces tin can, which is high-pressure aerosol can.
Application
FAQ
Q1. What’s the MOQ?
The MOQ is 7500 pcs for 3 pieces tin can.
Q2. How to get your samples?
We supply free stock samples with standard sizes of 1-5pcs for you to test the quality. But please provide your express account or afford the freight the cost.
Q3. Can you make samples with our Logo? How long days would we get it?
Yes, we can make samples with your printing design. Usually it needs around 15 days.
Q4. What is the lead time if I place an order?
Usually it needs 12-20 days that the production would be completed.
Q5. What’s the payment term?
Usually we make T/T, 30% advance payment and 70% balance against of B/L copy. If you have the other demand, please contact us to communicate.
